1310nm UPC Fiber Pigtail SC , OD 0.9mm Fiber Cable Pigtail 12 Core

Product Categories
Shenzhen Hengtongda Comunication Equipment Co., Ltd.
Contact Now

1310nm UPC Fiber Pigtail SC , OD 0.9mm Fiber Cable Pigtail 12 Core

Brand Name : OEM

Model Number : SC UPC

Certification : ISO9001

Place of Origin : China

MOQ : 10 Sets

Payment Terms : T/T

Supply Ability : 1000 sets / week

Packaging Details : Each set of pigtail can be packaged in a 20*20 square plastic bag or a pigtail plastic box.

Price : Negotiable

Connector type : SC

Ferrule End Face : UPC

Insertion loss : ≤ 0.3 dB

Return loss : ≥ 50 dB

Length : 1 Meter / Customized

Fiber type : G652D / G655 / G657A1 / G657A2

Cable diameter : 0.9 mm

Wavelength : 1310 nm / 1550 nm

Cable color : 12 Color Fixed

Jacket material : LSZH / PVC

Contact Now

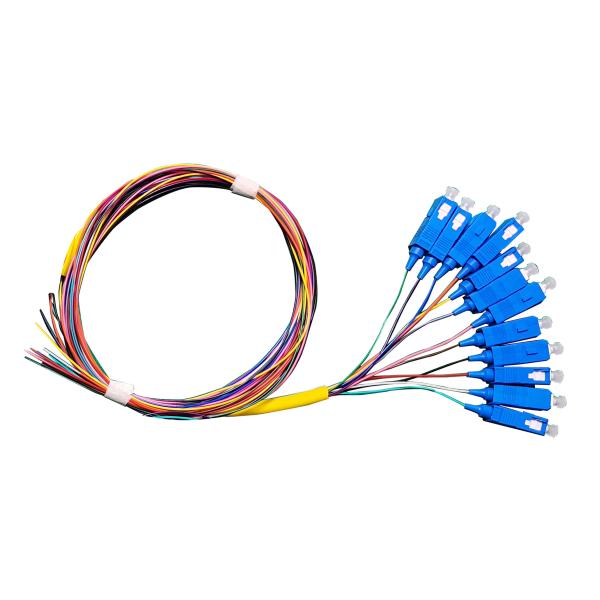

12 Fiber Core SC UPC Single Mode 0.9 mm Bundle Pigtail Cable Color Fixed

This pigtail product is having twelve pieces 0.9 mm single mode simplex colored fiber cable (length & fiber type selectable) with one SC UPC connector at one end (twelve connectors in total).

12 color bundle pigtail has its cable color fixed.

Product Feature

◆ Easy Installation

◆ Small Size High Dense

◆ Excellent mechanical endurance

◆ Good in Repeatability

◆ 3D Interference Test More than 90% Passed

Product Parameter

Parameter Unit Data
Operating Wavelength nm

1310

1550
Insertion Loss dB ≤ 0.3
Return Loss dB ≥ 50

3D Interference Test

Passing Rate

 % 90
Repeatability dB ≤ 0.1
Plug and Pull Durability Times > 1000
Operating Temperature °C -10 ~ +75
Storage Temperature °C -40 ~ +85

Product Detail

1310nm UPC Fiber Pigtail SC , OD 0.9mm Fiber Cable Pigtail 12 Core

1310nm UPC Fiber Pigtail SC , OD 0.9mm Fiber Cable Pigtail 12 Core

1310nm UPC Fiber Pigtail SC , OD 0.9mm Fiber Cable Pigtail 12 Core

FAQ

Q1: How can I get a quotation? How long does it take?

A1: You can request an quotation or email us (sales01@sz-htd.com). We will send you an exact quotation within one business day.

Q2: How long will the goods be delivered after placing order?

A2: We currently have a lot of SC UPC 12 color bundle pigtail in stock. Order would be shipped immediately.

Q3: Can you supply OEM products under our brand?

A3: Yes. As a large scale original manufacturer, HTD accepts OEM service. You just need to send us your detailed requirements.

Q4: Can I request a sample? Is it free?

A4: Yes, HTD provides sample service for every product. If we have raw material of the product you want in stock, we can provide you free sample. Please check with us beforehand to see whether you can get a free sample.
